Buyer context
Who this guide is written for.
Construction fleet maintenance teams, crawler equipment repair workshops, mining contractors, rental fleets, and distributors sourcing track shoes, wheels, stop blocks, pins, rollers, idlers, and sprocket-related parts.
Undercarriage parts are often ordered after a machine has already shown wear, noise, vibration, or poor tracking. The buyer wants a fast quote, but the supplier needs enough information to avoid sending a part that looks right and fits wrong.
Track shoes, wheels, rollers, idlers, stop blocks, pins, and shafts all have hidden variables. Pitch, width, hole pattern, tread profile, flange shape, bore size, hardness, and installed position can change between machine variants or old aftermarket versions.
The practical RFQ method is to tie each item to the machine model, old part reference, installed position, measured dimensions, working condition, and quantity. Photos help, but measurements and fit details are what protect the maintenance window.
Product scope
Product scope this RFQ route can cover.
Mismatch risks
Where quotes usually go wrong.

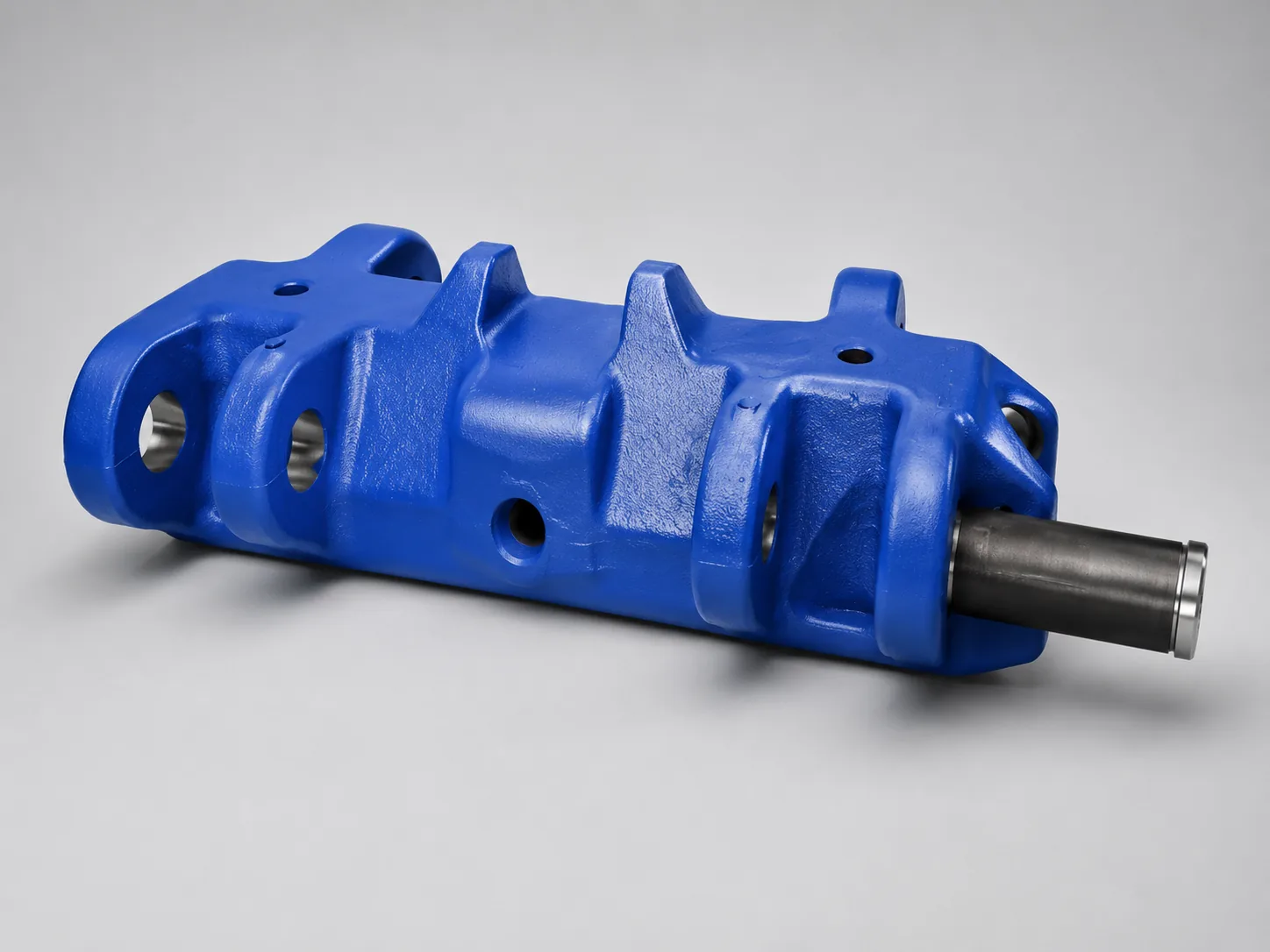

The machine model is correct but the track shoe is not.
- Cause
- The RFQ does not confirm shoe width, pitch, bolt hole layout, bolt size, or grouser form.
- Buyer loss
- The shoes may not assemble with the chain or may create uneven wear after installation.
- Control
- Measure pitch, width, hole centers, bolt size, grouser height, and send top and side photos.
A wheel or roller profile is matched by appearance only.
- Cause
- The buyer sends one photo without bore size, flange profile, tread width, bearing detail, or installed position.
- Buyer loss
- The part can interfere with track movement, wear quickly, or fail during installation.
- Control
- Send profile photos, bore or shaft dimensions, tread width, outside diameter, and the installed position on the machine.
Stop blocks are quoted without impact and fixing details.
- Cause
- The RFQ gives approximate size but not mounting hole pattern, impact face, material expectation, or worn-part photos.
- Buyer loss
- The block may need site drilling, welding adjustment, or early replacement.
- Control
- Provide drawing or measured dimensions, hole pattern, impact side, machine position, and quantity.
Hardness and heat-treatment expectations are unclear.
- Cause
- The inquiry says track part or pin without defining material, surface hardness, depth requirement, or working condition.
- Buyer loss
- A cheaper quote may not represent the same wear route or contact condition.
- Control
- State known material, hardness target if required, lubrication condition, abrasive environment, and inspection request.
A mixed undercarriage list is not separated by installed position.
- Cause
- Rollers, wheels, shoes, pins, and blocks are listed together without machine side, quantity, or position notes.
- Buyer loss
- The quote returns with too many assumptions and cannot be checked against the repair plan.
- Control
- Use one line per part, mark left or right if relevant, and add machine model, position, dimensions, and quantity.
RFQ fields
Information to put in the first email.
| Scope | Send | Why it matters |
|---|---|---|
| Machine and position | Machine brand and model, serial range if known, installed position, left or right side if relevant, and operating condition. | Undercarriage variants can change across the same equipment family, especially after repairs or aftermarket replacements. |
| Track shoes | Pitch, shoe width, hole centers, bolt size, grouser shape, shoe thickness, old part number, and photos. | Track shoe mismatch usually happens at pitch, hole layout, or grouser geometry. |
| Wheels, rollers, and idlers | Outside diameter, tread width, flange profile, bore or shaft size, bearing detail, seal detail, and installed position. | Profile and interface dimensions decide whether the part runs correctly with the track system. |
| Stop blocks and brackets | Drawing, mounting hole pattern, contact face, material or hardness notes, photos of the worn area, and quantity. | Stop blocks need fit and impact review, not just a rough size. |
| Pins and shafts | Diameter, length, shoulder, groove, thread, hardness or heat treatment, mating bushing detail, and lubrication condition. | Pins and shafts control wear, fit, and replacement labor. |
| Order and delivery | Quantity by line, urgent items, destination port, packing request, sample approval need, and deadline. | Mixed undercarriage orders are easier to review when critical items and repeat quantities are marked. |
Review route
How this RFQ should be cleaned up.
- Do not rely on the machine model alone.Use the model as a starting point, then confirm the measured features that control assembly and wear.
- Measure the part that controls fit.For shoes, check pitch and hole layout. For wheels, check profile and bore. For pins, check diameter, length, shoulder, groove, and hardness notes.
- Send photos from more than one angle.A top photo is not enough for flanges, tread faces, shaft ends, mounting surfaces, or worn contact areas.
- Split mixed lists into repair groups.Group track shoes, wheels, rollers, idlers, pins, and blocks so the supplier can review each route without guessing.
- Confirm inspection points before batch production.Ask for checks that matter to fit and wear, such as hole center, bore size, profile, hardness, and part mark.
Factory review points
Control points buyers should ask suppliers to check.
- Machine model, installed position, old part number, and measured dimensions confirmation.
- Track shoe pitch, width, hole layout, bolt size, and grouser profile check.
- Wheel or roller profile, bore, tread width, bearing or shaft interface review.
- Stop block hole pattern, contact face, material note, and mounting orientation check.
- Pin and shaft diameter, shoulder, groove, heat treatment, and surface finish review.
- Line-item labels, urgent-item marking, pallet separation, and export packing confirmation.
FAQ
Common questions before sending this inquiry.
Can undercarriage parts be matched by machine model?
The model is useful, but it should be checked against measurements, old part photos, installed position, and part number if available. Machine variants and previous repairs can change the part needed.
What dimensions matter most for track shoes?
Pitch, shoe width, hole center, bolt size, grouser shape, and thickness are usually the first dimensions to confirm.
Why are photos not enough for wheels and rollers?
Photos show the general shape but not bore size, bearing detail, seal layout, tread width, flange profile, or hardness requirements.
How should a mixed undercarriage RFQ be organized?
Use one line per item, add machine model, installed position, dimensions, quantity, drawing or photo status, and mark urgent repair items clearly.
